Ⅰ. Processing flow

Manual Suction cup Loading(can order Pneumatic automatic loading system), (Lamp Inspection), Multi-row weighing, Electronic Grading, 4 levels Egg Grading

Ⅱ. Technic parameters

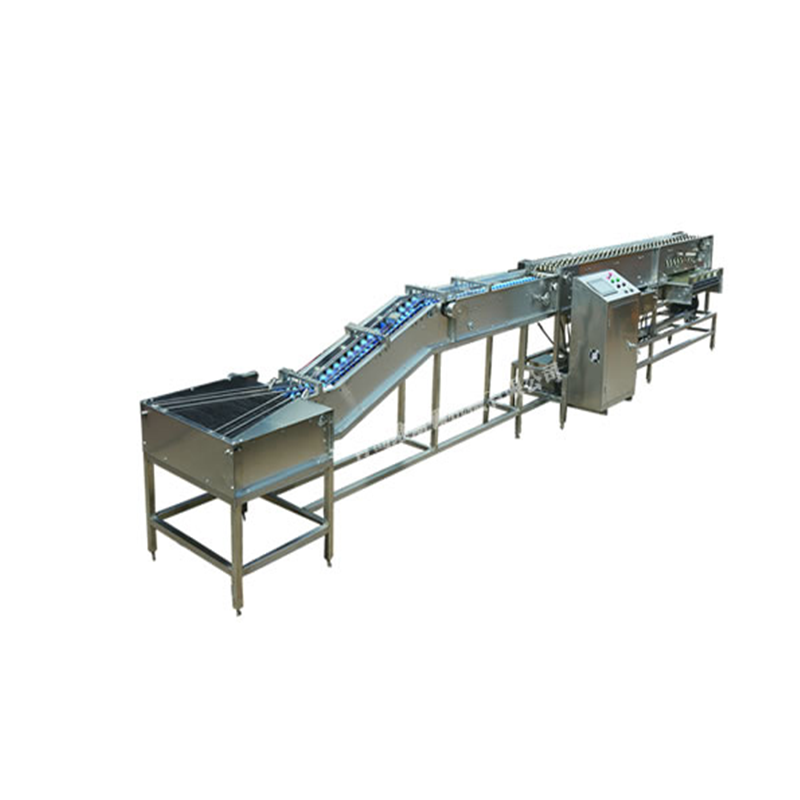

Machine Name                                     Egg Electronic Weighing Grader

Model                                                 WF100

Productivity                                         10000pcs/h

Egg Loading                                         Manual Suction cup Loading(can order Pneumatic                                                                       automatic loading system)

Egg Beating Position                             1row

Grading level                                         5 levels

Grading tolerance                                 +/-0.5gDelivery

Speed                                                   0 - 0.5m/s, Steplessly adjustable

Power                                                   3.5kw

Power supply                                         380V

Outsize                                                 3400x1300x1100mm

Approximate weight                               1200kg

Ⅲ. Machine Features

1. PLC touch screen control interface, operation intelligence and easy;
2. Weighing uses advanced multi-row zero-speed electronic weighing technology;
3. Multi-row Weighing with Multi-row Grading, get fast grading and small place used;
4. Flexible to use for eggs, duck eggs, dried egg yolks, and grading levels can be increased or decreased as required;
5. Can be Seamless equipped with the washing machine or packaging machine

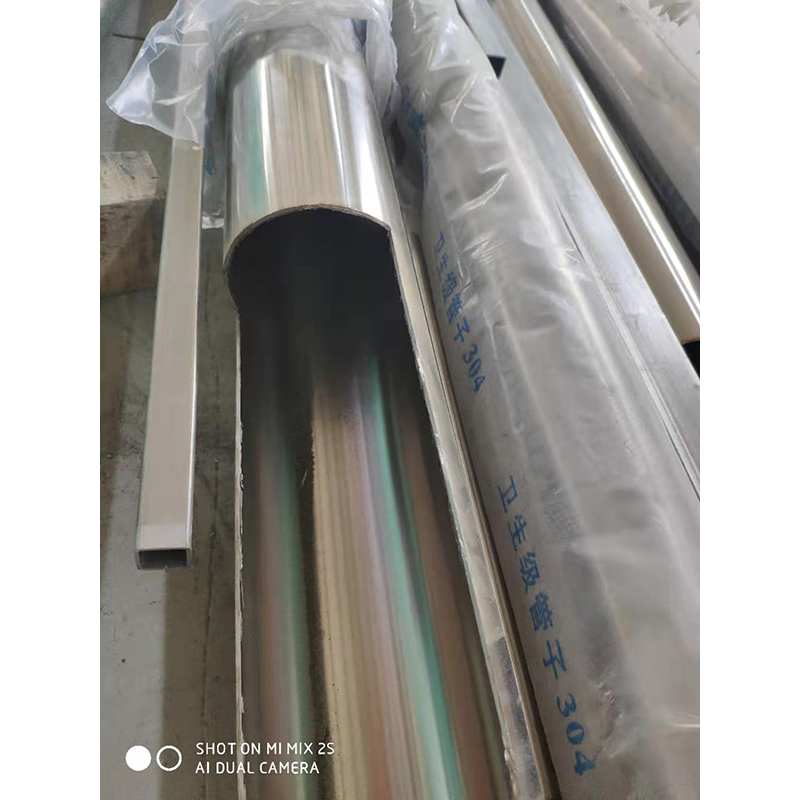

6. The main structure is made of thick 304 stainless steel, which is firm, non-deformable and long service life;
7. Food contact part is made of food-grade 304 stainless steel, which meets food safety requirements;
8. Main accessories are integrally formed with automatic tools to ensure stable and reliable operation for a long time;
9. Egg breakage rate is low, low employment, high economic efficiency;
10. Key components of the equipment are imported from Germany & the USA, with low wear, low noise and durable.
